Micro Cable Carriers · 6 Series
6 Series Bridge-type cable carrier, inner height 6 mm, inner width 10 mm

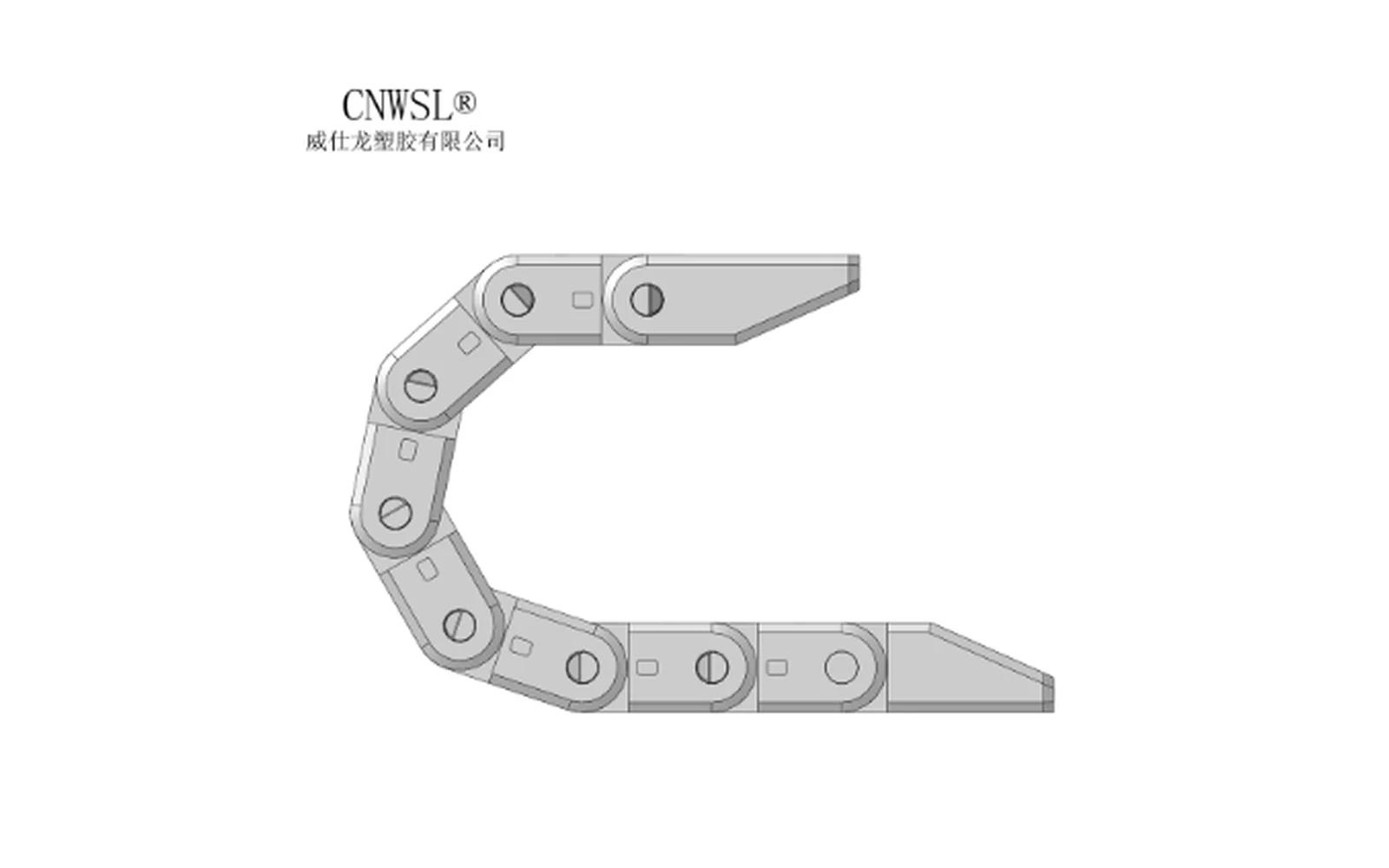

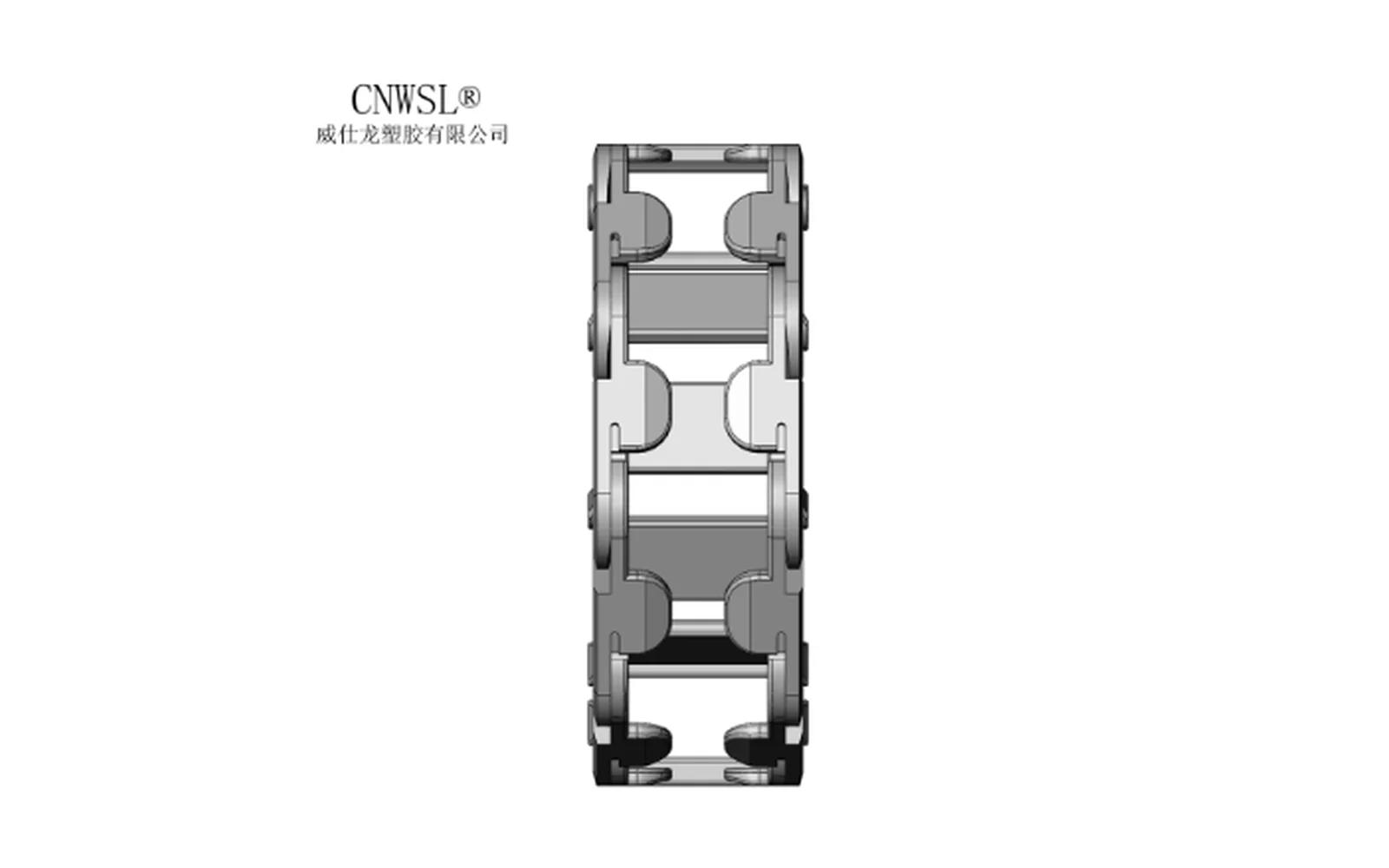

WSL01X-6-10 is a CNWSL Micro Cable Carriers 6 Series carrier with 6 mm inner height, 10 mm inner width, PA6+GF30 reinforced nylon, and bend radii R18.
Specifications
- Model code
- WSL01X-6-10
- Inner height (H)
- 6 mm
- Inner width (B)
- 10 mm
- Opening type
- Bridge-type
- Material
- PA6+GF30 reinforced nylon
- Connector
- WSL01X-6-10C
Available bend radii
The same size can be ordered with different bend radii (R). Length and travel can be customized to your duty cycle.
| Bend radius | Code example | Notes |
|---|---|---|
| R18 | WSL01X-6-10-R18 | Compact spaces |
Features
- Bridge-type design for industrial cable protection
- Inner height 6 mm / inner width 10 mm
- Bend radii R18
- Material PA6+GF30 reinforced nylon
- Matching connector WSL01X-6-10C
Request a quote
Tell us your machine type, travel and bend-radius needs—we will reply with pricing promptly.
