Silent Cable Carriers · Silent 25 Series
Silent 25 Series Silent cable carrier, inner height 25 mm, inner width 77 mm

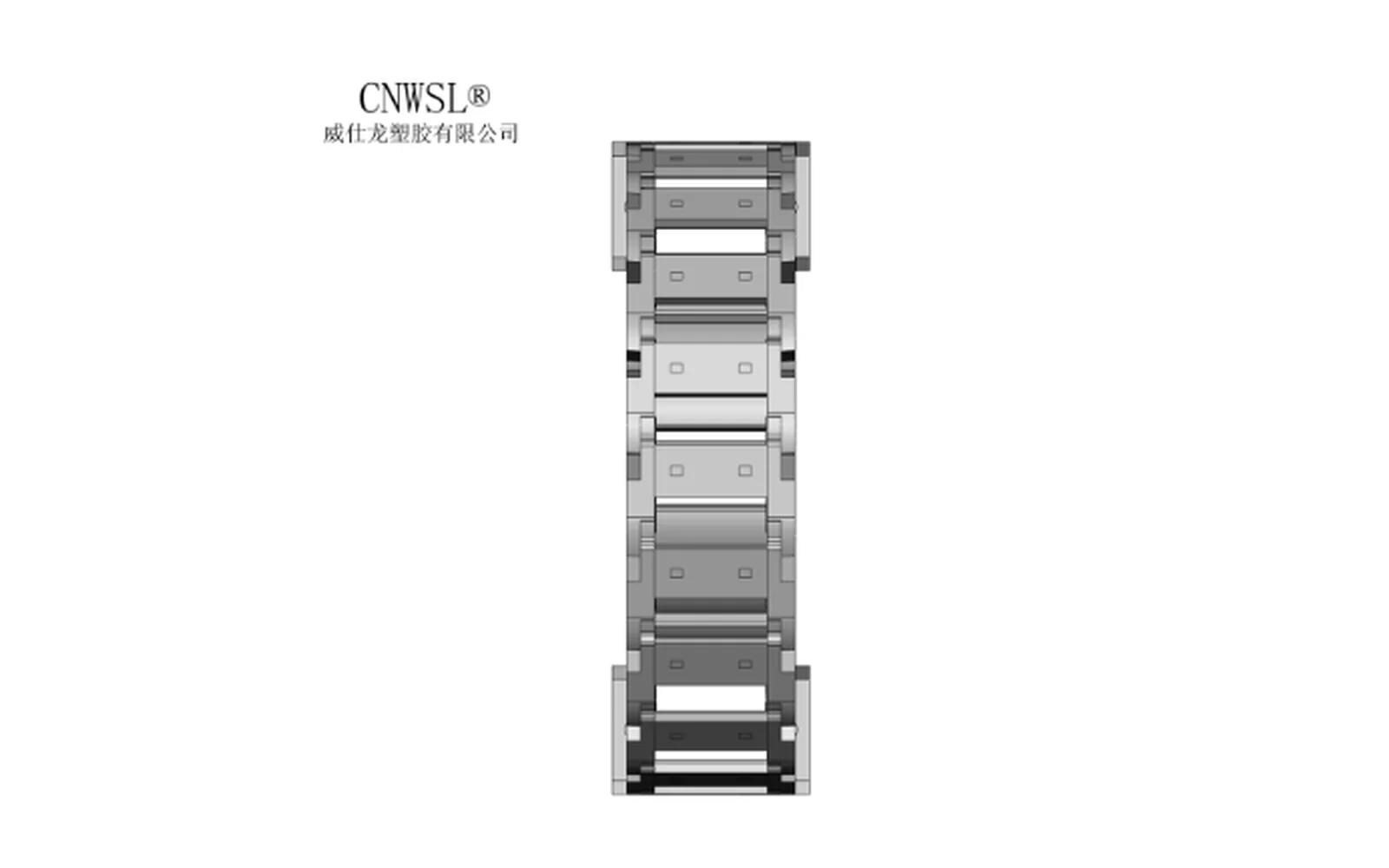

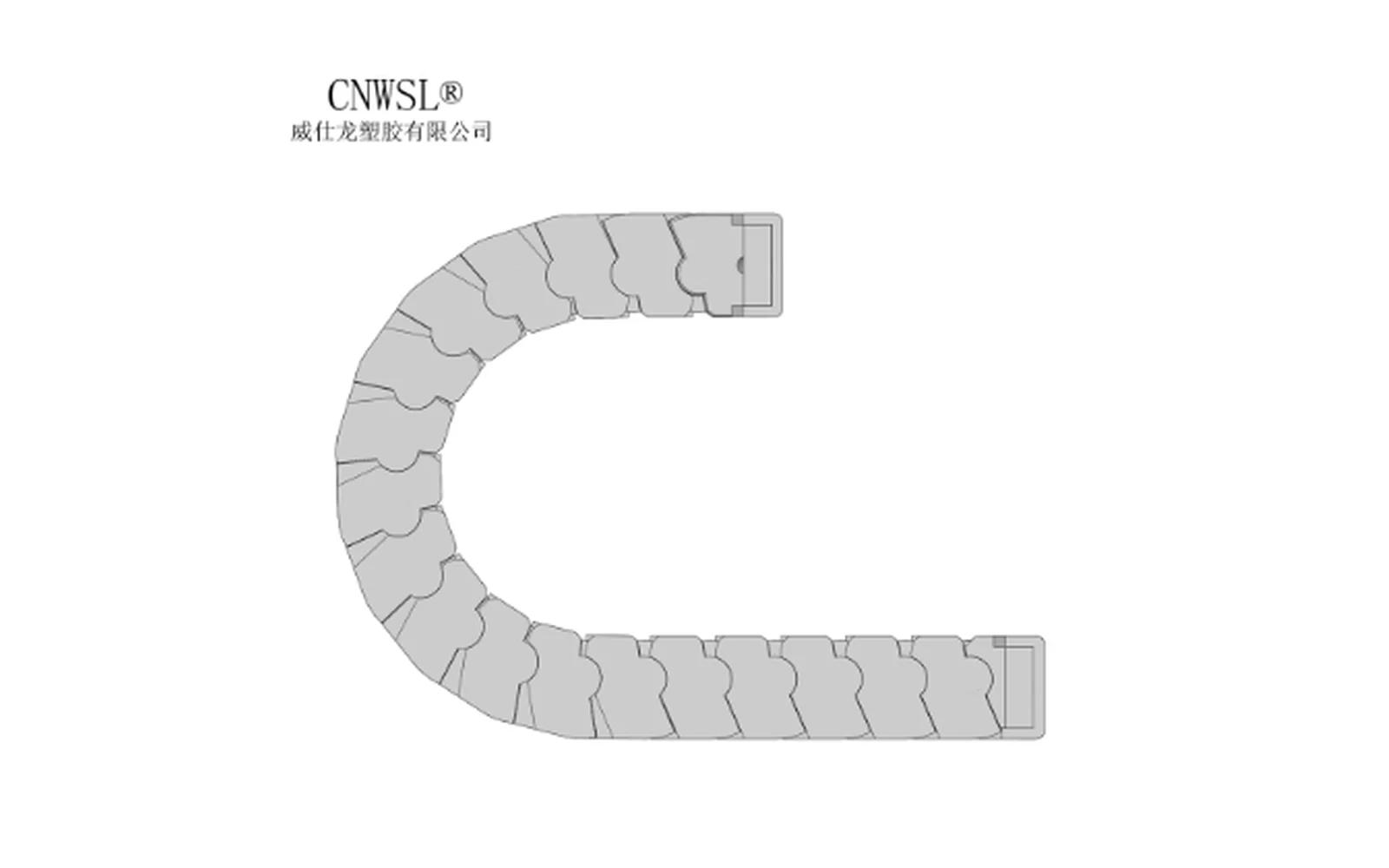

WSL02J-25-77 is a CNWSL Silent Cable Carriers Silent 25 Series carrier with 25 mm inner height, 77 mm inner width, PA6+GF30 reinforced nylon, and bend radii R55 / R75 / R100 / R125.
Specifications
- Model code
- WSL02J-25-77
- Inner height (H)
- 25 mm
- Inner width (B)
- 77 mm
- Opening type
- Silent
- Material
- PA6+GF30 reinforced nylon
- Connector
- WSL02J-25-77C
Available bend radii
The same size can be ordered with different bend radii (R). Length and travel can be customized to your duty cycle.
| Bend radius | Code example | Notes |
|---|---|---|
| R55 | WSL02J-25-77-R55 | Compact spaces |
| R75 | WSL02J-25-77-R75 | Common choice |
| R100 | WSL02J-25-77-R100 | Common choice |
| R125 | WSL02J-25-77-R125 | Long travel / thick cables |
Features
- Silent design for industrial cable protection
- Inner height 25 mm / inner width 77 mm
- Bend radii R55, R75, R100, R125
- Material PA6+GF30 reinforced nylon
- Matching connector WSL02J-25-77C
