Silent Cable Carriers · Silent 40 Series

Silent 40 Series Silent cable carrier, inner height 40 mm, inner width 100 mm

WSL09J-40-100 is a CNWSL Silent Cable Carriers Silent 40 Series carrier with 40 mm inner height, 100 mm inner width, PA6+GF30 reinforced nylon, and bend radii R75 / R100 / R150.

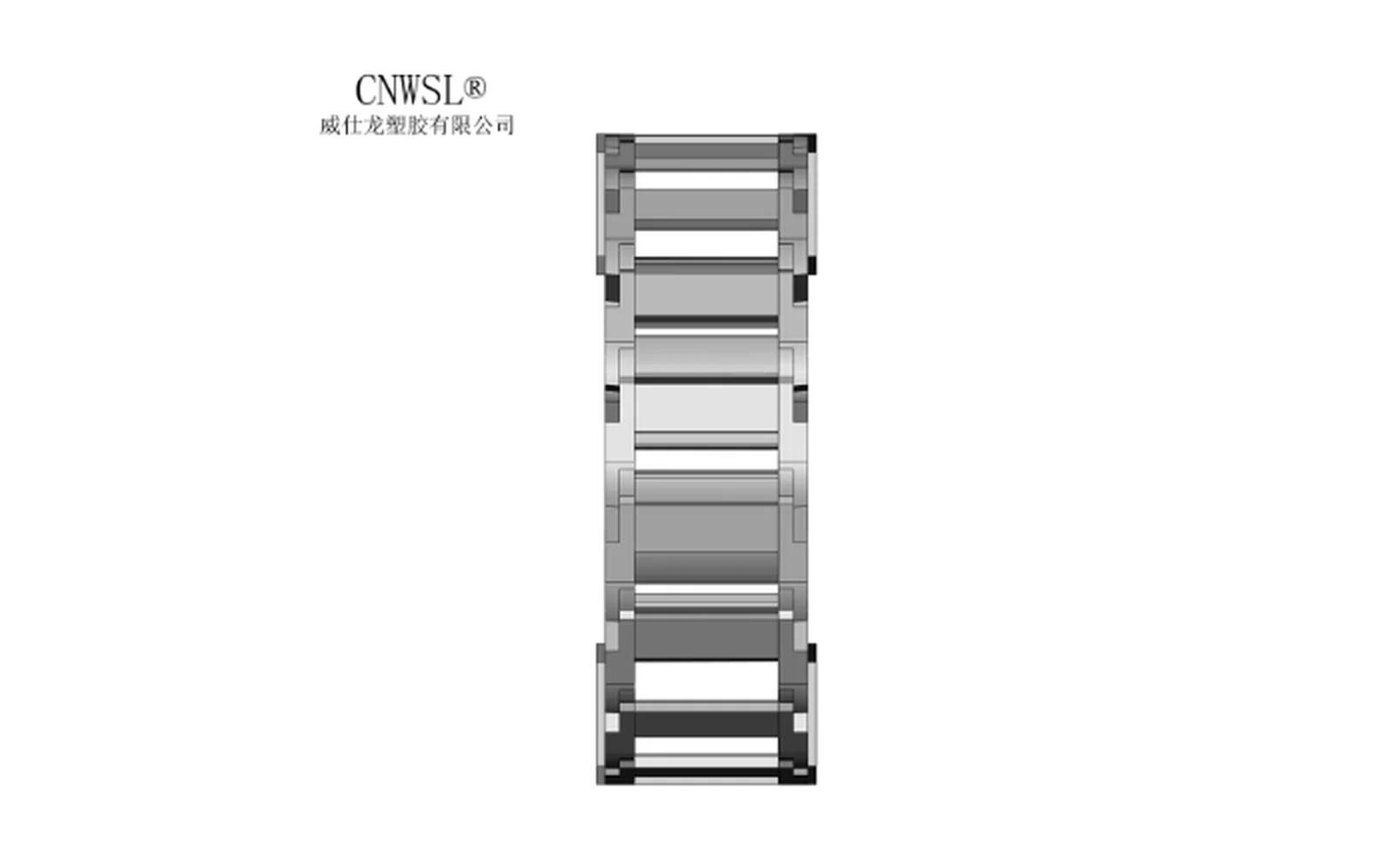

WSL09J-40-100 40seriesmain view

Specifications

Model code
WSL09J-40-100
Inner height (H)
40 mm
Inner width (B)
100 mm
Opening type
Silent
Material
PA6+GF30 reinforced nylon
Connector
WSL09J-40-100C
Download drawing (PDF)Back to series list

Available bend radii

The same size can be ordered with different bend radii (R). Length and travel can be customized to your duty cycle.

Bend radiusCode exampleNotes
R75WSL09J-40-100-R75Common choice
R100WSL09J-40-100-R100Common choice
R150WSL09J-40-100-R150Long travel / thick cables

Features

  • Silent design for industrial cable protection
  • Inner height 40 mm / inner width 100 mm
  • Bend radii R75, R100, R150
  • Material PA6+GF30 reinforced nylon
  • Matching connector WSL09J-40-100C

Silent 40 Series — Other sizes in this series

Request a quote

Tell us your machine type, travel and bend-radius needs—we will reply with pricing promptly.
