Medium Cable Carriers · 20 Series

20 Series Bridge-type cable carrier, inner height 20 mm, inner width 40 mm

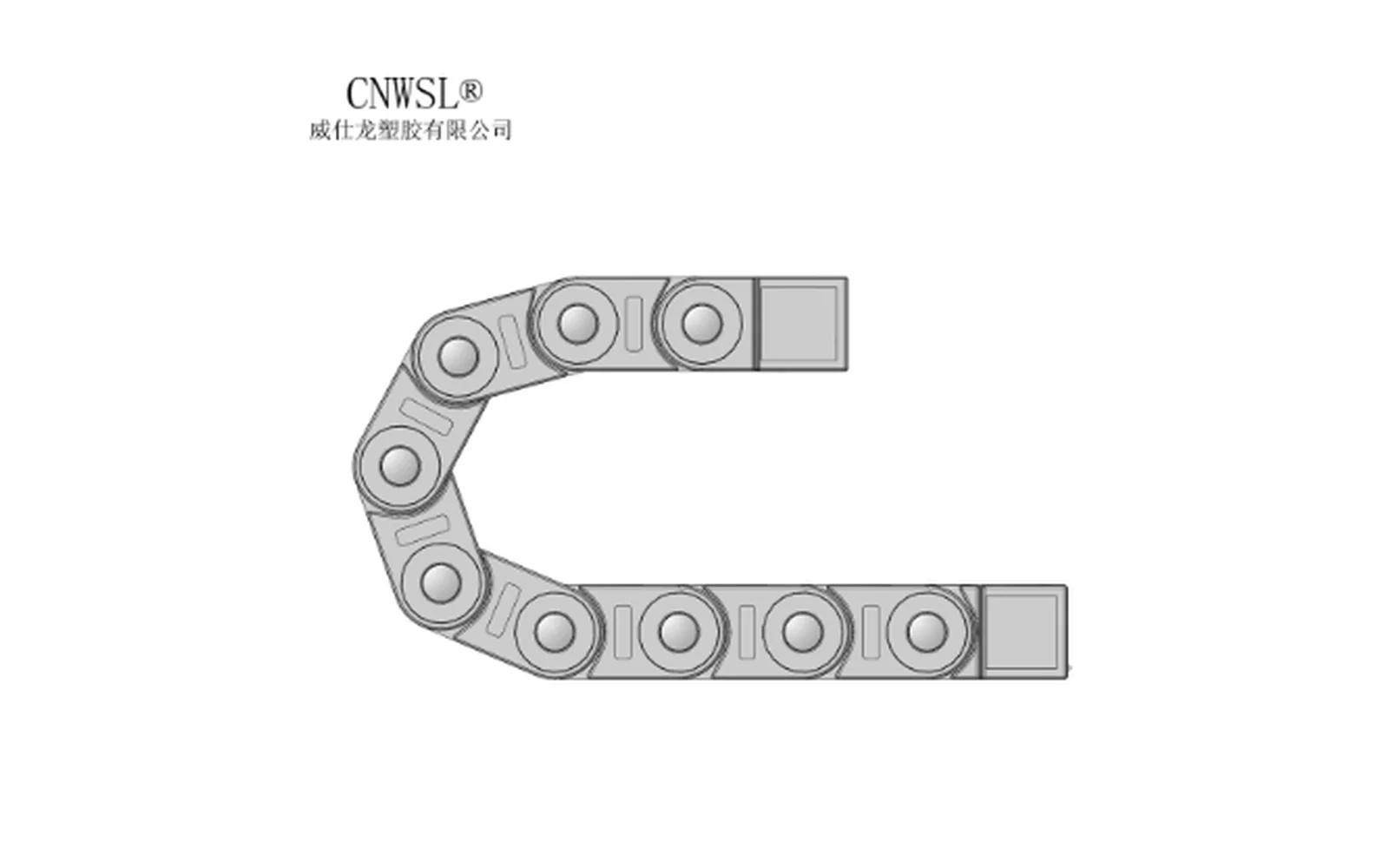

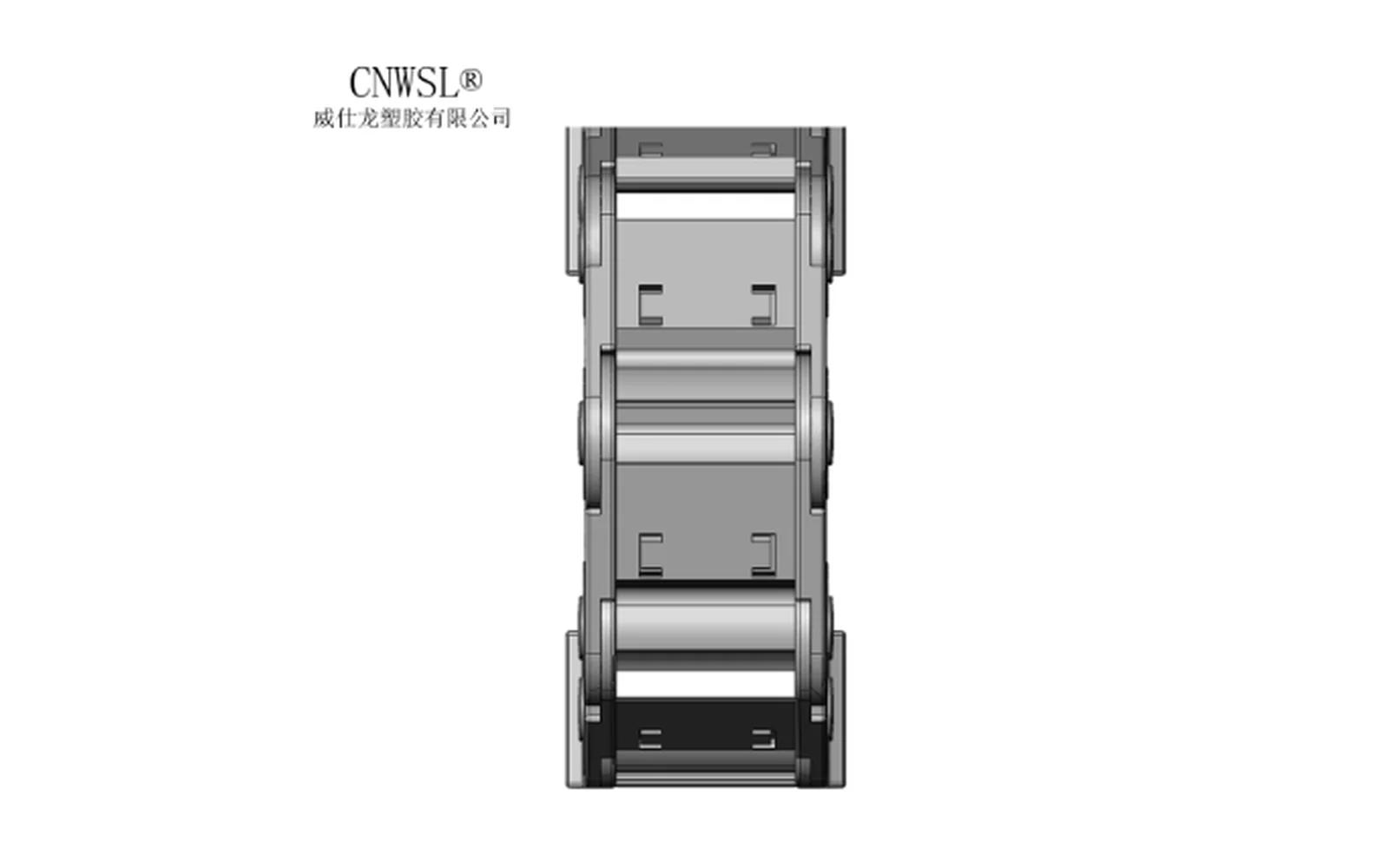

WSL16-20-40 is a CNWSL Medium Cable Carriers 20 Series carrier with 20 mm inner height, 40 mm inner width, PA6+GF30 reinforced nylon, and bend radii R55 / R75 / R100 / R125.

WSL16-20-40 20seriesmain view

Specifications

Model code
WSL16-20-40
Inner height (H)
20 mm
Inner width (B)
40 mm
Opening type
Bridge-type
Material
PA6+GF30 reinforced nylon
Connector
WSL16-20-40C
Download drawing (PDF)Back to series list

Available bend radii

The same size can be ordered with different bend radii (R). Length and travel can be customized to your duty cycle.

Bend radiusCode exampleNotes
R55WSL16-20-40-R55Compact spaces
R75WSL16-20-40-R75Common choice
R100WSL16-20-40-R100Common choice
R125WSL16-20-40-R125Long travel / thick cables

Features

  • Bridge-type design for industrial cable protection
  • Inner height 20 mm / inner width 40 mm
  • Bend radii R55, R75, R100, R125
  • Material PA6+GF30 reinforced nylon
  • Matching connector WSL16-20-40C

20 Series — Other sizes in this series

Request a quote

Tell us your machine type, travel and bend-radius needs—we will reply with pricing promptly.
