Cleanroom Cable Carriers · WWC22

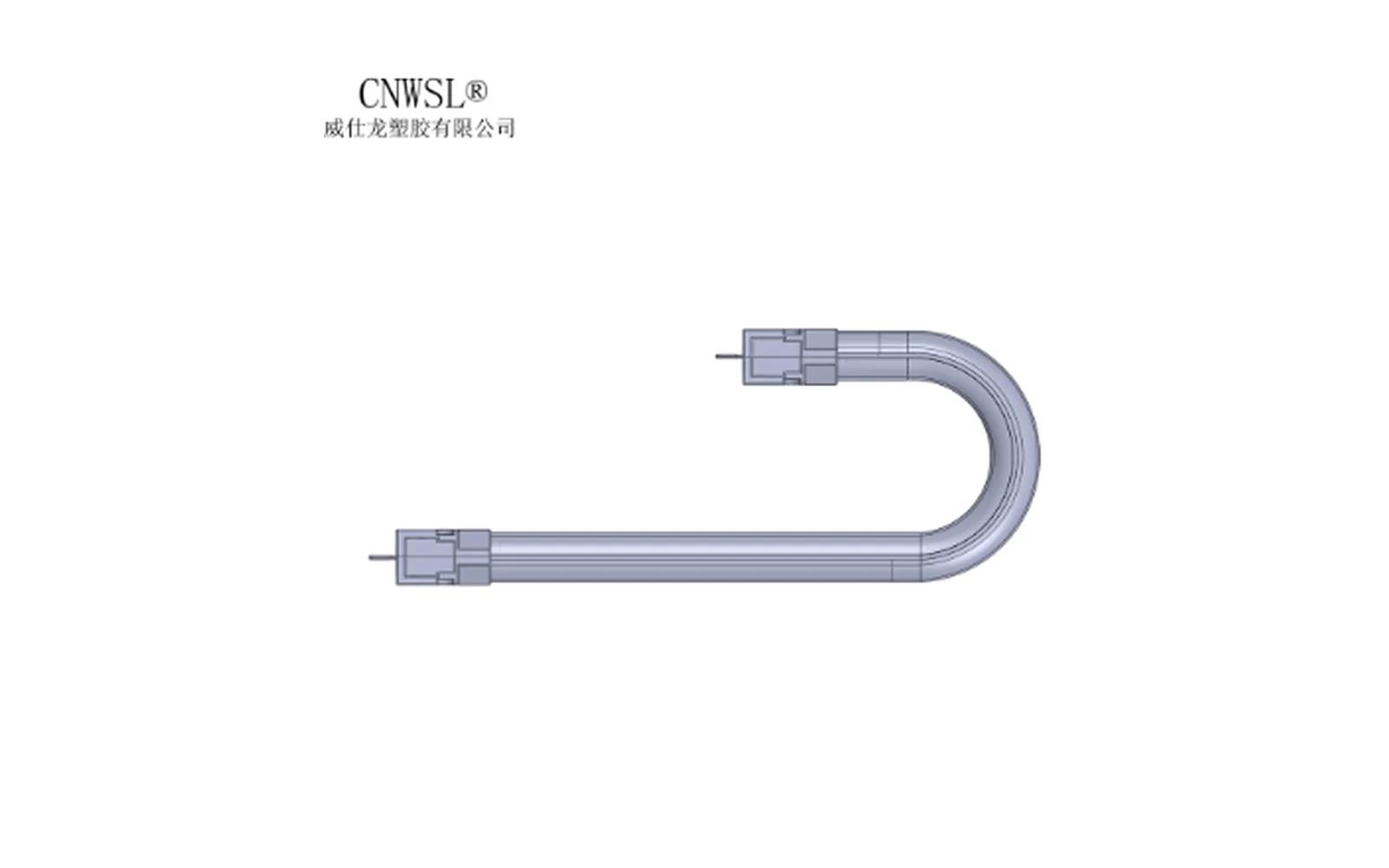

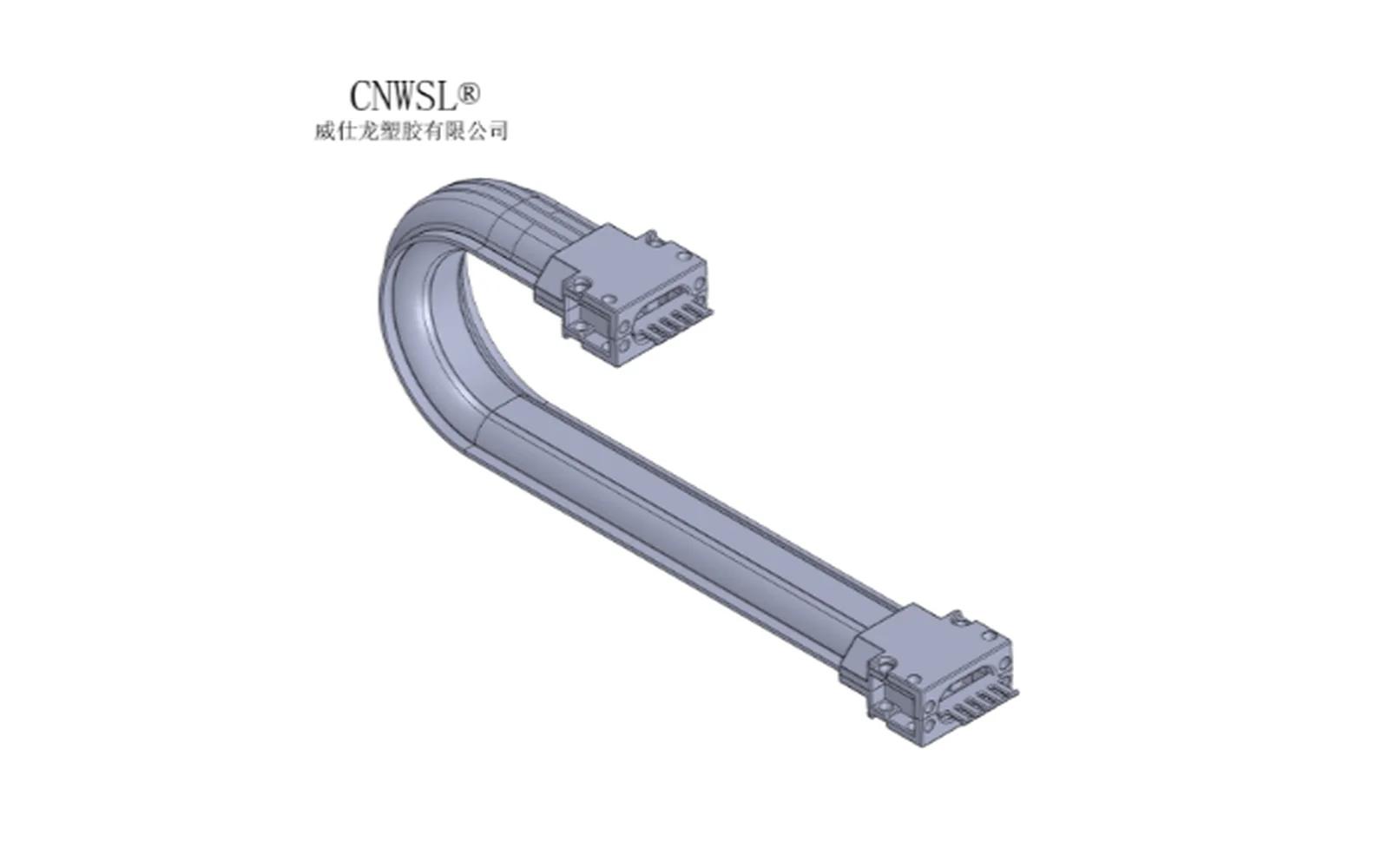

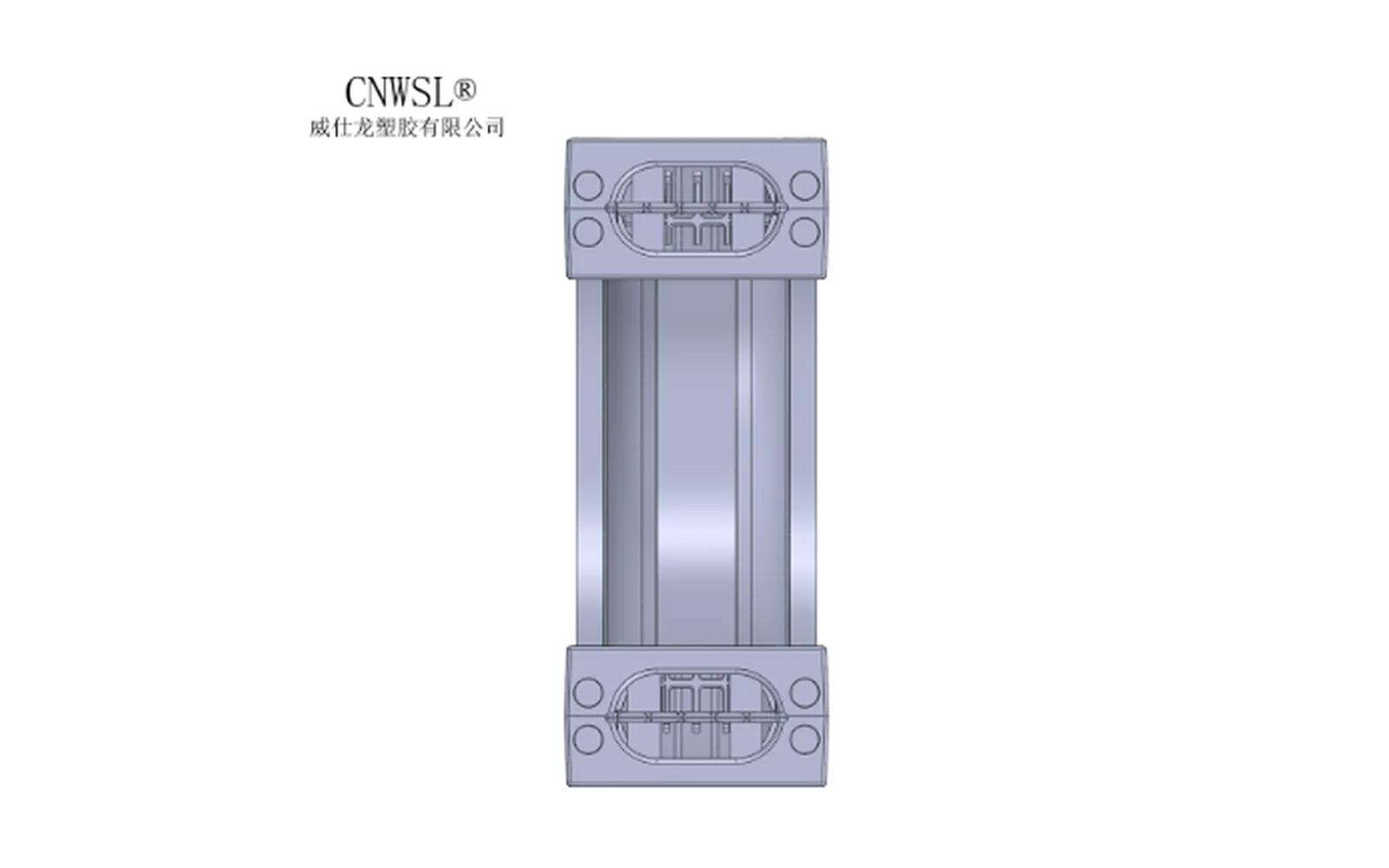

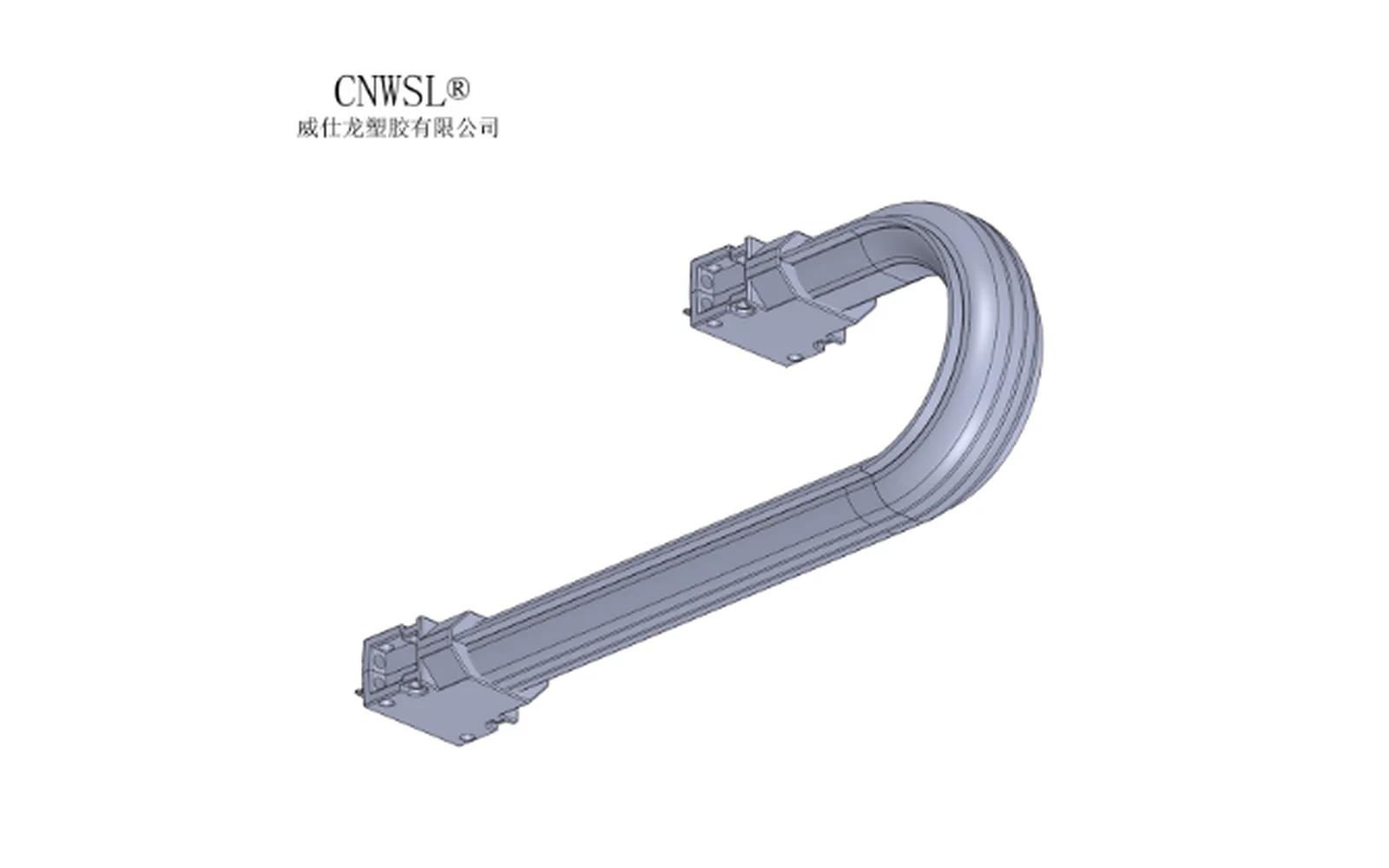

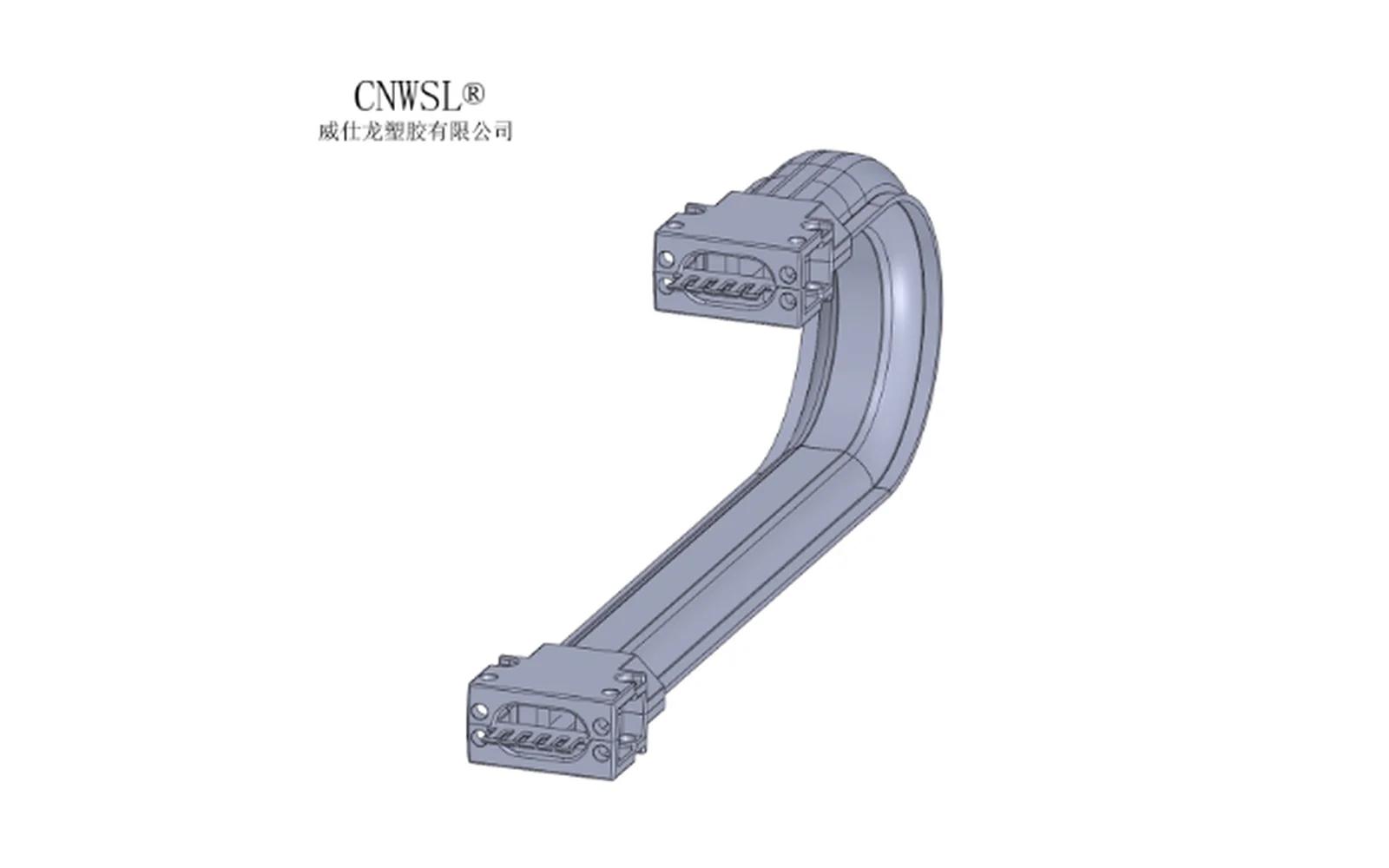

WWC22 Cleanroom cable carrier, inner height 22 mm, inner width 40 mm
WWC22-22-40 is a CNWSL Cleanroom Cable Carriers WWC22 carrier with 22 mm inner height, 40 mm inner width, TPU, and bend radii R40 / R50 / R60 / R70.
Specifications
- Model code
- WWC22-22-40
- Inner height (H)
- 22 mm
- Inner width (B)
- 40 mm
- Opening type
- Cleanroom
- Material
- TPU
- Connector
- WWC22-22-40C
Available bend radii
The same size can be ordered with different bend radii (R). Length and travel can be customized to your duty cycle.
| Bend radius | Code example | Notes |
|---|---|---|
| R40 | WWC22-22-40-R40 | Compact spaces |
| R50 | WWC22-22-40-R50 | Compact spaces |
| R60 | WWC22-22-40-R60 | Common choice |
| R70 | WWC22-22-40-R70 | Common choice |
Features
- Cleanroom design for industrial cable protection
- Inner height 22 mm / inner width 40 mm
- Bend radii R40, R50, R60, R70
- Material TPU
- Matching connector WWC22-22-40C
Request a quote
Tell us your machine type, travel and bend-radius needs—we will reply with pricing promptly.
